- Size: 2000*1200*400mm
- Place of Origin: Shandong
- Brand Name: Hengyuan

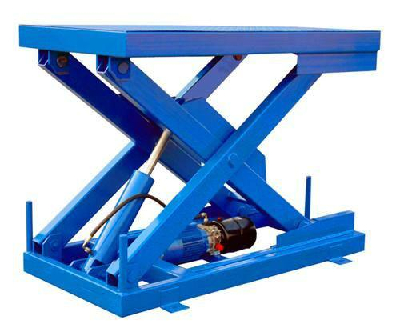

- Model Number: SJG1.0-1.0
- Weight: 496.000 kg
- :
- :
- :
Product performance:
The lift automatically starts or stops when touch its switch button at certain height.
With safety device to protect platform from overloading.
With safety valves to protect hydraulic oil tube from breaking
Its descent device start work when there's no power and in emergency.
Safety device interlocked with control system and gate.
Different configuration options suit to installation condition and application requirement.
Equipment Parameters ：
Model-No. | Loading capacity | Net lifting height | Shut height | Platform size | Net Weight | Lifting speed |
SJG1.0-1.0 | 1000kg | 1100mm | 400mm | 2000*1200mm | 496kg | 3-5m/min |
SJG1.0-1.6 | 1000kg | 1650mm | 400mm | 2500*1500mm | 688kg | 3-5m/min |
SJG1.0-2.1 | 1000kg | 2100mm | 450mm | 3000*1500mm | 890kg | 3-5m/min |
