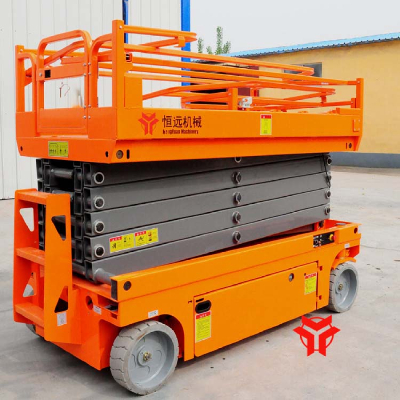

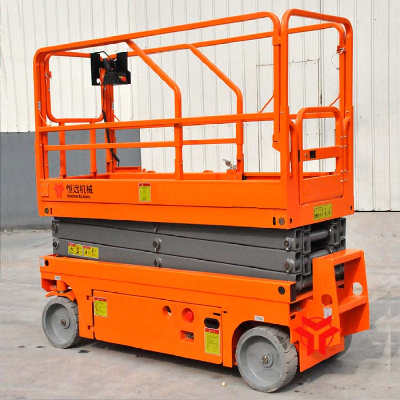

Product Details
- Size: 2.48*0.81*2.21
- Place of Origin: Shandong
- Brand Name: Hengyuan
- Model Number: ZJCY08
- Weight: 1854.000 kg
| Models | ZJCY08 | |
| Size | ||
| Working Height | 8m | |
| Platform Floor Height | 6m | |
| Overall Length | 2.48m | |
| Overall Width | 0.81m | |
| Overall Height (Rails up) | 2.21m | |
| Overall Height (Rails down) | 1.65m | |
| Platform Size (Length/Width) | 2.27m*0.81m | |
| Platform Extension Size | 0.9m | |
| Ground Clearance(Stowed) | 0.1m | |
| Ground Clearance (Raised) | 0.019m | |
| Wheel Base | 1.87m | |
| Performance | ||
| Safe working load | 380kg | |
| Maximum Workers Number | 2 | |
| Extension platform safe working load | 113kg | |
| Turning Radius (Inside) | 0 | |
| Turning Radius (Outside) | 2.10m | |
| Travel Speed (Stowed) | 2.9km/h | |
| Travel Speed (Raised) | 0.8km/h | |
| Up/Down Speed | 60/100 sec | |
| Tyre | φ381*127mm | |
| Gradeability | 25% | |
| Maximum Working Slope | 2°/3° | |
| Power | ||
| Lifting/Drive Motor | 24v/3.3kw | |
| Betteries | 4×6V/225Ah | |
| Integrated Charger | 24v/25A | |
| Weight | ||
| Gross Weight | 1854kg | |
