Hengyuan Machinery

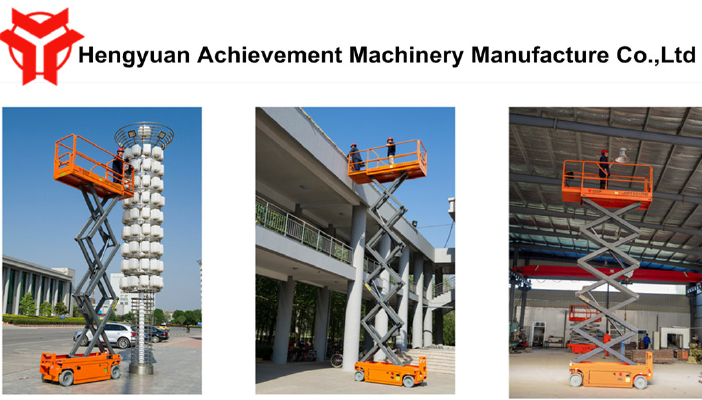

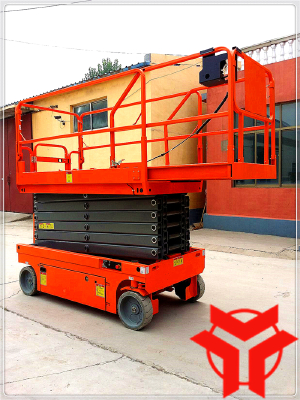

designed self-propelled scissor lifts following the philosophy of durable and sturdy service life,high safety and performance. This mobile elevating platform for aerial work could meet the operating need in complexity working environment. It's working height ranges from 8 meters to 44 meters, propelled itself in a flexible way, with features of large working range, strong driving force, big carrying capacity and better slope-climbing ability. Hengyuan self-propelled scissor lifts are widely used in marine industry,large-scale steel structure, construction engineering,municipal gardening, airport and seaport, facade Engineering, petrochemical industry, etc.
Basic parameters Model | ZJCY12 |
Safe working load | 320kg |
Extension platform Safe working load | 113kg |
Maximum Workers Number | 2 |
Working Height | 12m |
Platform Floor Height | 10m |
Overall Length | 2.48m |
Overall Width | 1.15m |
Overall Height(Rails up) | 2.47m |
Overall Height(Rails down) | 1.91m |
Platform Size(Length/Width) | 2.27m*1.12m |
Platform Extension Size | 0.9m |
Ground Clearance(Stowed) | 0.1m |
Ground Clearance(Raised) | 0.019m |
Wheel Base | 1.87m |
Turning Radius(Inside) | 0 |
Turning Radius(Outside) | 2.20m |
Lifting/Drive Motor | 24v/3.3kw |
Travel Speed(Stowed) | 2.6km/h |
Travel Speed(Raised) | 0.8km/h |
Up/Down Speed | 90/80 sec |
Betteries | 4×6V/225Ah |
Integrated Charger | 24v/25A |
Gradeability | 25% |
Maximum Working Slope | 2°/3° |
Tyre | φ381*127mm |
Weight | 2508kg |
