Product Details
- Size: 2.48m*1.15m*2.04m
- Place of Origin: Shandong
- Brand Name: Hengyuan
- Model Number: ZJCY14
- Weight: 2800.000 kg
- :
- :
- :

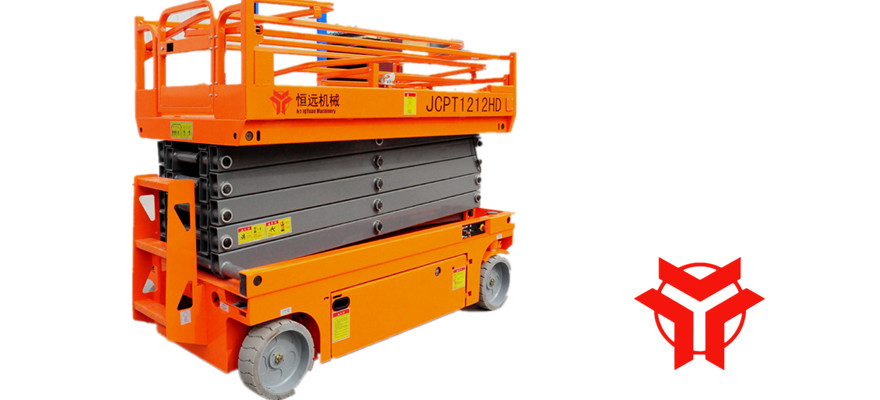

The slide-out platform extends to the operating point rapidly.
Folding guardrails reduce machine's size.
Minimum turning radius in the industry(0m of the insider ), and compact machine design, make it convenient for operation in narrow space.
25% grade ability, climb a slope easily.
Rotary classis make it easy to maintain.
Automatically display error code, make overhauling easily.
| Basic parameters Model | ZJCY14 |
| Safe working load | 320kg |
| Extension platform Safe working load | 113kg |
| Maximum Workers Number | 2 |
| Working Height | 13.8m |
| Platform Floor Height | 11.8m |
| Overall Length | 2.48m |
| Overall Width | 1.15m |
| Overall Height(Rails up) | 2.59m |
| Overall Height(Rails down) | 2.04m |
| Platform Size(Length/Width) | 2.27m*1.12m |
| Platform Extension Size | 0.9m |
| Ground Clearance(Stowed) | 0.1m |
| Ground Clearance(Raised) | 0.019m |
| Wheel Base | 1.87m |
| Turning Radius(Inside) | 0 |
| Turning Radius(Outside) | 2.20m |
| Lifting/Drive Motor | 24v/4.5kw |
| Travel Speed(Stowed) | 2.6km/h |
| Travel Speed(Raised) | 0.8km/h |
| Up/Down Speed | 100/80 sec |
| Betteries | 4×6V/240Ah |
| Integrated Charger | 24v/25A |
| Gradeability | 25% |
| Maximum Working Slope | 1.5°/3° |
| Tyre | φ381*127mm |
| Weight | 2800kg |
